| Model
No.RPZQ-101 |
 |
FLUORESCENT MICROSCOPE
WITH ADAPTER
FOR QUICK AND ASSURED
MALARIAL PARASITE DETECTION |
| The Fluorescent Microscope
Adapter attached with conventional microscope
enhances diagnostic capabilities and cost-effective
testing. |
ADAPTABLE ACCESSORIES
» Binocular Head
» Trinocular Head
» Digital Camera |
| SYSTEM INCLUDES:- |
Illuminator : Rheostat
controlled Illumination
Illuminator
Bulb : 21V / 150W Halogen (Life upto
1000 hours)
1) Fibre Optic Cable transmits white light
from the illuminator.
2) Focusing Lens passes white light from the
illuminator to
the Excitation filter.
3) Standard threading assures adaptability to
all microscopes. |
FOR GENERAL CLINICAL
LABORATORIES
Obtain test results in a more timely manner while
increasing revenues. |
FOR TEACHING CENTERS:
Make an affordable fluorescent microscope available
for each student. |
FOR MICROBIOLOGIST:
Increase fluorescent capabilities in the microbiology
department and supplement over-utilized fluorescent
microscopes. |
FOR INDUSTRY:
Develop multiple microscopy sites for
cost-effective, specialized fluorescent applications.
|
|
|
| Model
No.RPZQ-102 |
 |
| FLUORESCENT MICROSCOPE |
| Specifications: |
| Fluorescent Illumination:
EX490 nm (blue) |
| EX545 nm (Green) exciting
light filter system, ordinary light system. |
| Trinocular tube with photo/video
port |
| Interpupillary distance 55-75mm |
| Eye Piece:10x
/ 18mm |
| Precise
Ball Bearing Quadruple Nosepiece |
| Objectives:
achromatic 4x, 10x, 40x, 100x |
| FL-10x, 25x, 40x and 100x
spring loaded |
| Abbe NA 1.2 UV protection
screen |
| Stage: Double
Plae low position Coaxial |
| Illumination Halogen Lamp,
Hg HBO-100W Mercury LAMP 220~230V / 50~60Hz0 |
|
|
| Model
No.RPH-777 |
 |
PENTA HEAD Multi
Viewing Microscope
(Infinity Corrected Plan Optical System) |
PENTA HEAD Multi Viewing
Microscope – Incorporates in innovative optical
and structural design idea, facilitating group
discussions and consultation by FIVE observers
during important meetings, conferences and seminars.
Penta Head is equipped with FIVE observation head,
inclined at 45 degree / 30 degree for comfortable
viewing, including the central Trinocular Head
to accept optional Photomicrography and Video
Equipments. The built in LED Green Light Pointer,
with adjustable brightness can be moved in the
filed of view during group discussion. Supplied
as above with the following infinity Eyepiece.
WF 10x. 5 Pairs
Plan Objective (infinity corrected) PL 8 4x, PL
8 10x, PL 8 40x, PL 8 100x |
| TECHNICAL SPECIFICATIONS: |
| EYEPIECE |
Ultrawide field
& compensating WF 10x Paired eyepiece 5 pairs |
| Visual Field Diameter |
Low & forward position.
Co-axial coarse & fine focusing
mechanism supported on ball bearing with tension
control ring and pre-focus stopper. Fine motion
reading 0.002mm |
| Working Distance |
INFINITY CORRECTED SUPPER PLAN
OBJECTIVE PL 8 4x,
PL 8 10x, PL 8 40x, PL 8 100x (Anti Fungus) |
| Weight |
A MOVEABLE BUILT IN GREEN LED
POINTER
(BRIGHTNESS ADJUSTABLE) IS SUPPLIED AS A STANDARD
ACCESSORY |
| OBSERVATION HEAD |
One number high transmission
Trinocular head 45degree / 30degree
inclined. Compensation free, 360 degree rotatable.
Four numbers compensations free Binocular Head
inclined 45degree / 30 degree and 360 degree rotatable. |
| OPTICAL SYSTEM |
Infinity corrected plan optical
system with DIN standard Optics
(True Colour) |
| ILLUMINATION |
Inward revolving quadruple nosepiece
with ball bearing system for
perfect alignment. |
| STAGE |
LARGE MECHANICAL STAGE with
low position co-axial X-Y
motion controls. X-Y motion 75mm x 55mm |
| MAGNIFICATION |
40x – 1000x standard. Optionally
upto 2000x |
| CONDENSER |
Swing out condenser to provide
perfect illumination under all
magnification to all the observers. |
|
|
![]() |

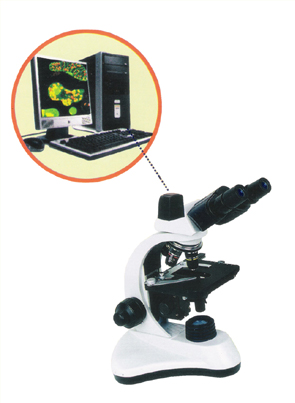

| Model
No.DM-666 |
 |
| MICROSCOPE
WITH DIGITAL VIDEO IMAGING SYSTEM |
| Specifications: |
| Trinocular Siedentopf Head 30degree
/ 45degree inclined, 360 degree rotatable, IPD
55 to 75mm |
| Eye piece High Eye point WF
10x with diopter adjustment of eye pieces &
eye guards. |
| Reversed Quadruple nosepiece. |
| Plan Achromat Objectives 4x,
10x, 40x (S.L), 100x (S.L) Oil immersion Anti
fungus Optics. |
| Coaxial coarse and fine focusing
adjustment. |
| Built in low position coaxial
mechanical stage, rectangular mechanical stage
Cross travel range of 76x50mm in X & Y direction
with vernier scale hard coated, right hand control. |
| 1.2 NA Abbe’s condenser with
Iris Diaphragm with blue filter. |
| Halogen 6V, 20W Koehlers illumination
with intensity control. |
| Switching power supply 220V
50Hz. |
Imaging Analysis Software
½ CMOS Chip, USB 2.0 PC Connection
Image Resolution 8 mega Pixels
Instant Image Capturing
Real time full screen image
Video Capture by time Settings
Easy Measurement Calibration
Length & angle Measurement |
|
|
|
